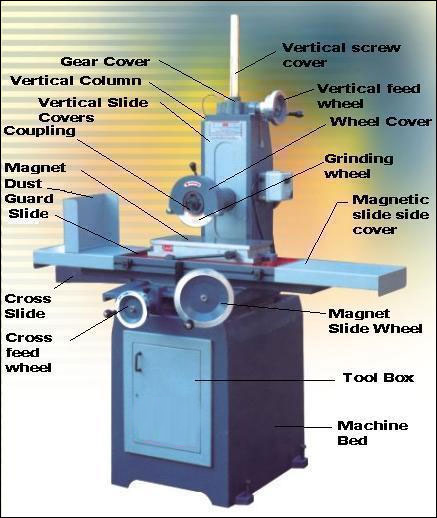

Place the machine on clean & horizontal leveled floor. Adjust the leveling screws to level the magnetic table using spirit level indicator. |
|
Remove the magnetic slide side cover & fill the oil (Shell 10 or equivalent) upto the level of 3 to 4 mm on flat slide ( Approx quantity of oil is 4 to 5 litres ). |
|
Make machine's electrical connections to the power supply & check the wheel rotation as indicated on wheel cover. |
|
Before starting the machine lubricate the slides & screws by pumping lubrication pump. |
|
Dress the grinding wheel, remove the wheel along with coupling from machine & balance the wheel on balancing stand & again mount the wheel on machine. |
|
Now your machine is ready for operation. |
|
In case any taper is observed in work piece, check the magnet surface using dial indicator (within 0.01mm/ full length of magnet). If any surface damage or taper is observed, grind the table slowly & with light cuts (max 0.05 mm). |
|
In case vibration is observed, dress the wheel & balance it on balancing stand. Also check the spring tension of spindle after removing the wheel cover. |
|
In case of any uneven movement in vertical slide, remove the covers of vertical slides & clean with diesel or equivalent oil & lubricate properly. |
| Particulars | Daily | Monthly | Annually |
| Cleaning & Oiling | |
||
| Check oil level in magnet slide | |
||
| Oil level in lubrication pump | |
||
| Cleaning of vertical slides by removing front & rear covers | |
||
| Check the motor & spindle for any undue noise | |
||
| Greasing of Spindle (if required call service engineer) |
|
||
| Grind the magnet surface (very light cuts (max 0.05 mm) |
|
